HOME
> TNC

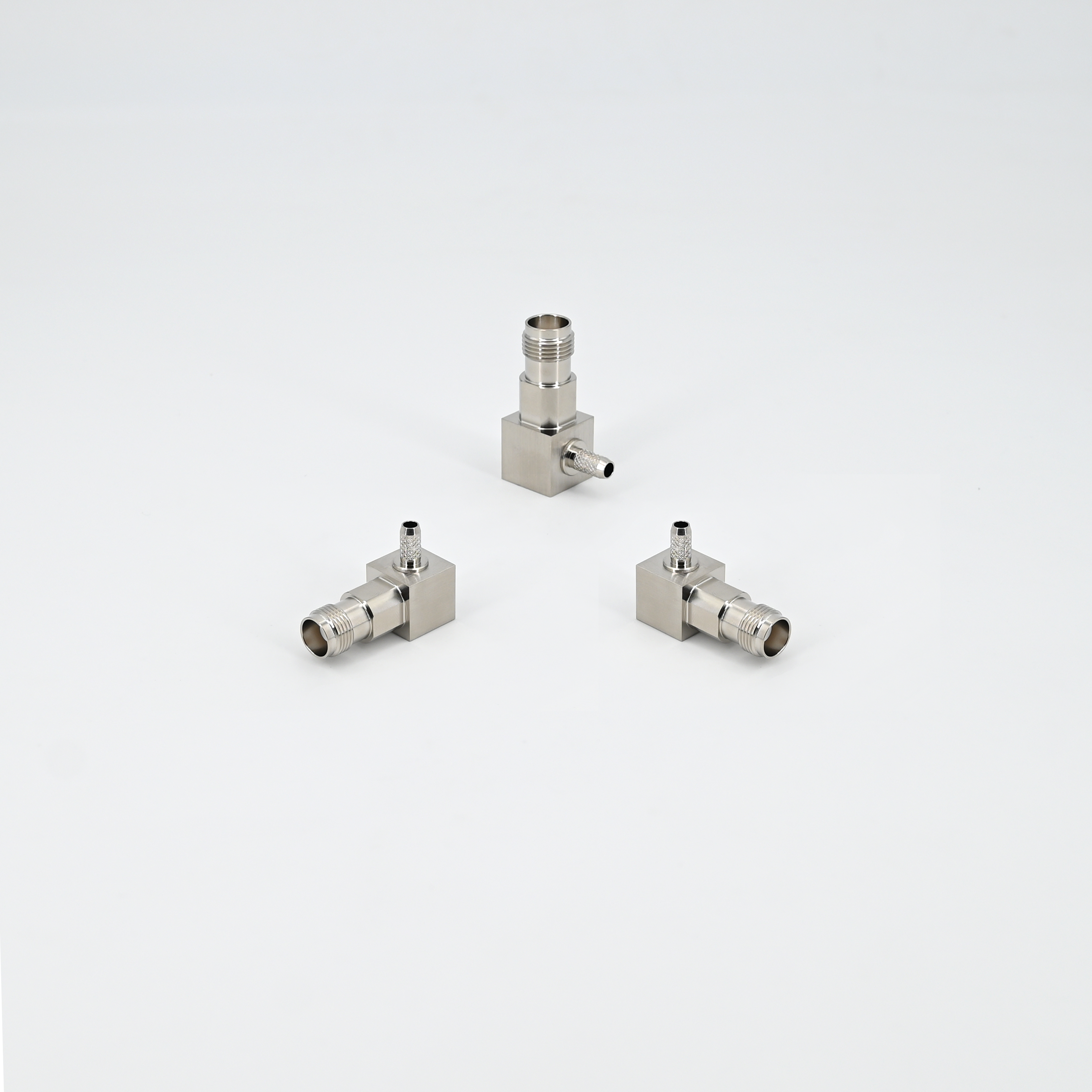

TNC
Types
Impedance
Orientation
Frequency Range
Mounting Feature
Terminates To
Coupling Mechanism
TNC-PJ-086
50 Ω
Straight
DC-6GHz
Cable-soldering
SR086/Flex086/RG405
Threaded
TNC-P-3DFW
50 Ω
Straight
DC-2GHz
Cable-clamp
3D-FW-CE
Threaded
TNC-P-1.5-CLAMP
50 Ω
Straight
DC-4GHz
Cable-clamp
1.5D-2V
Threaded
TMS11L195-A182
50 Ω
Straight
DC-6GHz
Cable-crimp
RG58/LMR195
Threaded
TFS11L195-A268
50 Ω
Straight
DC-6GHz
Cable-crimp
RG58/LMR195
Threaded
TFR210137-A296
50 Ω
Right Angle
DC-6GHz
Cable-soldering
RF1.37
Threaded
TFS11G405-A283
50 Ω
Straight
DC-11GHz
Cable-crimp
RF1.13
Threaded
TFS310137-A153
50 Ω
Straight
DC-11GHz
Cable-crimp
RF1.37
Threaded
TMR11L195-A226
50 Ω
Right Angle
DC-11GHz
Cable-crimp
LMR195
Threaded
TMS11G174-A257
50 Ω
Straight
DC-11GHz
Cable-crimp
RG174
Threaded
TNC-PJ-086
TNC-PJ-086
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-6GHz
Mounting Feature.
Cable-soldering
Terminates To.
SR086/Flex086/RG405
Coupling Mechanism.
Threaded
IP Rating.
IP67
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Gold
READ MORE
TNC-P-3DFW
TNC-P-3DFW
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-2GHz
Mounting Feature.
Cable-clamp
Terminates To.
3D-FW-CE
Coupling Mechanism.
Threaded
IP Rating.
IP67
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Silver
READ MORE
TNC-P-1.5-CLAMP
TNC-P-1.5-CLAMP
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-4GHz
Mounting Feature.
Cable-clamp
Terminates To.
1.5D-2V
Coupling Mechanism.
Threaded
IP Rating.
IP67
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Gold
READ MORE
TMS11L195-A182
TMS11L195-A182
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-6GHz
Mounting Feature.
Cable-crimp
Terminates To.
RG58/LMR195
Coupling Mechanism.
Threaded
IP Rating.
IP67
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Gold
READ MORE
TFS11L195-A268
TFS11L195-A268
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-6GHz
Mounting Feature.
Cable-crimp
Terminates To.
RG58/LMR195
Coupling Mechanism.
Threaded
IP Rating.
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Beryllium Copper
Contact Finish.
Gold
READ MORE
TFR210137-A296
TFR210137-A296
Impedance.
50 Ω
Orientation.
Right Angle
Frequency Range.
DC-6GHz
Mounting Feature.
Cable-soldering
Terminates To.
RF1.37
Coupling Mechanism.
Threaded
IP Rating.
IP67
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Phosphor Copper
Contact Finish.
Gold
READ MORE
TFS11G405-A283
TFS11G405-A283
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-11GHz
Mounting Feature.
Cable-crimp
Terminates To.
RF1.13
Coupling Mechanism.
Threaded
IP Rating.
IP65
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Gold
READ MORE
TFS310137-A153
TFS310137-A153
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-11GHz
Mounting Feature.
Cable-crimp
Terminates To.
RF1.37
Coupling Mechanism.
Threaded
IP Rating.
IP65
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Gold
READ MORE
TMR11L195-A226
TMR11L195-A226
Impedance.
50 Ω
Orientation.
Right Angle
Frequency Range.
DC-11GHz
Mounting Feature.
Cable-crimp
Terminates To.
LMR195
Coupling Mechanism.
Threaded
IP Rating.
IP65
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Gold
READ MORE
TMS11G174-A257
TMS11G174-A257
Impedance.
50 Ω
Orientation.
Straight
Frequency Range.
DC-11GHz
Mounting Feature.
Cable-crimp
Terminates To.
RG174
Coupling Mechanism.
Threaded
IP Rating.
IP65
Body Material.
Brass
Body Finish.
Nickel
Contact Material.
Brass
Contact Finish.
Gold
READ MORE
