Circular Waterproof
Types
Number Of Contacts
Code
Rated Voltage
Rated Current
Contact Resistance
Mechanical Life
M19NMS04-0037
4
/
250V
10A
≤1mΩ
>500 mating cycles
M19NMS02-0035
2
/
250V
10A
≤1mΩ
>500 mating cycles
M19NFS04-0038
4
/
250V
10A
≤1mΩ
>500 mating cycles
M19NFS02-0036
2
/
250V
10A
≤1mΩ
>500 mating cycles
M12DMS04-0015
4
D
250V
4A
≤3mΩ
>100 mating cycles
M12DFS04-0016
4
D
250V
4A
≤3mΩ
>100 mating cycles
M12AMS12-0026
12
A
30V
1.5A
≤3mΩ
>100 mating cycles
M12AMS08-0009
8
A
30V
2A
≤3mΩ
>100 mating cycles
M12AFS012-0032
12
A
30V
1.5A
≤3mΩ
>100 mating cycles
M12AFS012-0023
12
A
30V
1.5A
≤3mΩ
>100 mating cycles
M12AFS08-0025
8
A
30V
2A
≤3mΩ
>100 mating cycles
M12AFS08-0021
8
A
30V
2A
≤3mΩ
>100 mating cycles
M19NMS04-0037
M19NMS04-0037
Number Of Contacts.
4
Code.
/
Rated Voltage.
250V
Rated Current.
10A
Contact Resistance.
≤1mΩ
Mechanical Life.
>500 mating cycles
READ MORE

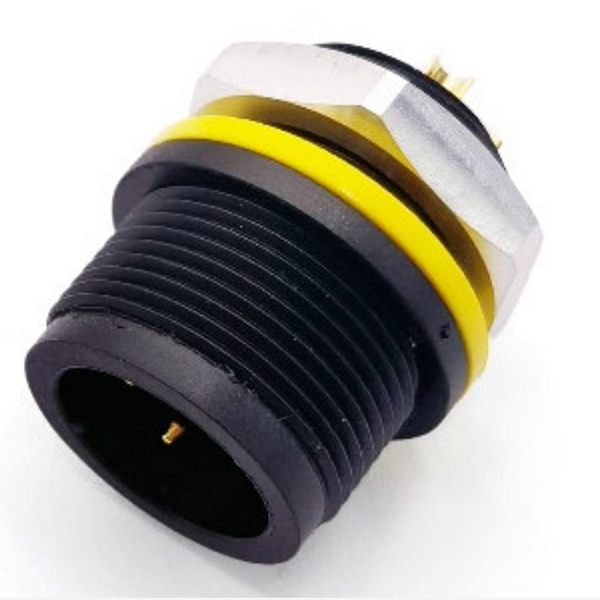

M19NMS02-0035
M19NMS02-0035
Number Of Contacts.
2
Code.
/
Rated Voltage.
250V
Rated Current.
10A
Contact Resistance.
≤1mΩ
Mechanical Life.
>500 mating cycles
READ MORE
M19NFS04-0038
M19NFS04-0038
Number Of Contacts.
4
Code.
/
Rated Voltage.
250V
Rated Current.
10A
Contact Resistance.
≤1mΩ
Mechanical Life.
>500 mating cycles
READ MORE
M19NFS02-0036
M19NFS02-0036
Number Of Contacts.
2
Code.
/
Rated Voltage.
250V
Rated Current.
10A
Contact Resistance.
≤1mΩ
Mechanical Life.
>500 mating cycles
READ MORE

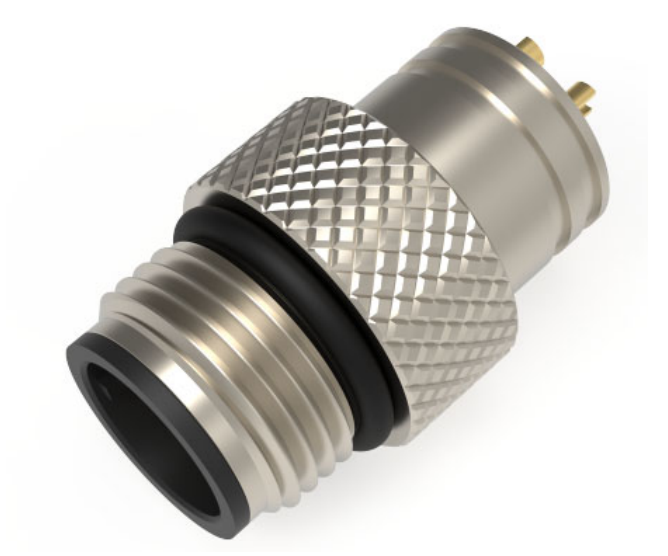

M12DMS04-0015
M12DMS04-0015
Number Of Contacts.
4
Code.
D
Rated Voltage.
250V
Rated Current.
4A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE
M12DFS04-0016
M12DFS04-0016
Number Of Contacts.
4
Code.
D
Rated Voltage.
250V
Rated Current.
4A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE
M12AMS12-0026
M12AMS12-0026
Number Of Contacts.
12
Code.
A
Rated Voltage.
30V
Rated Current.
1.5A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE

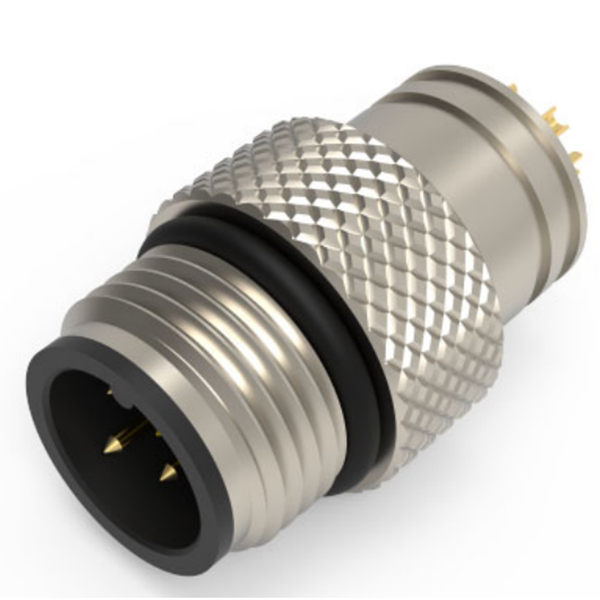

M12AMS08-0009
M12AMS08-0009
Number Of Contacts.
8
Code.
A
Rated Voltage.
30V
Rated Current.
2A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE

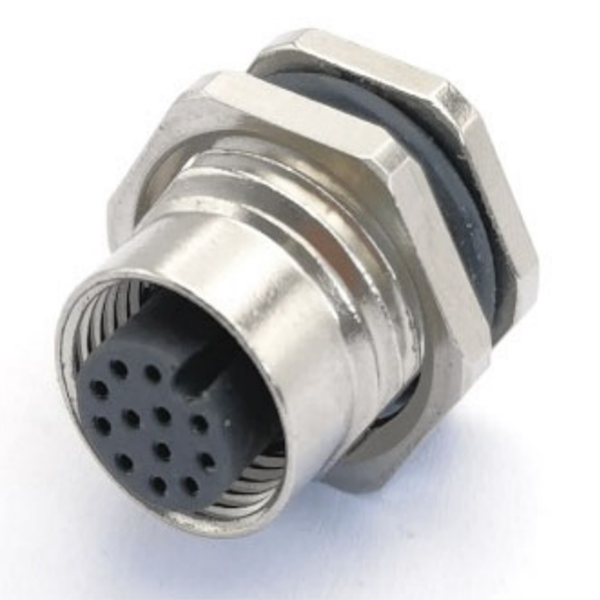

M12AFS012-0032
M12AFS012-0032
Number Of Contacts.
12
Code.
A
Rated Voltage.
30V
Rated Current.
1.5A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE
M12AFS012-0023
M12AFS012-0023
Number Of Contacts.
12
Code.
A
Rated Voltage.
30V
Rated Current.
1.5A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE

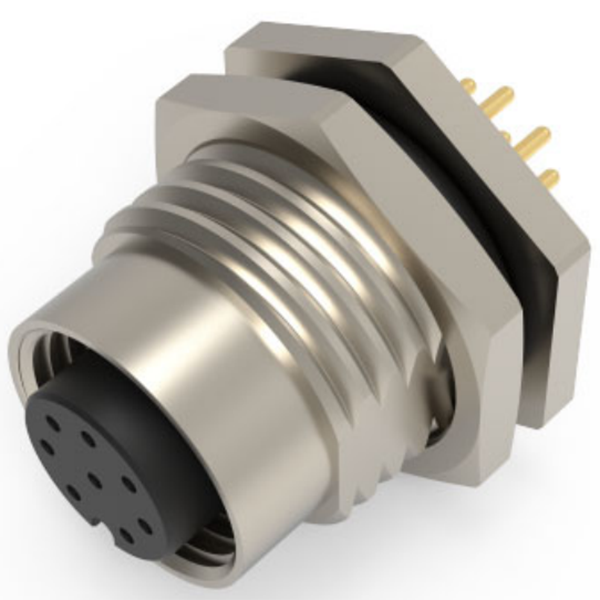

M12AFS08-0025
M12AFS08-0025
Number Of Contacts.
8
Code.
A
Rated Voltage.
30V
Rated Current.
2A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE

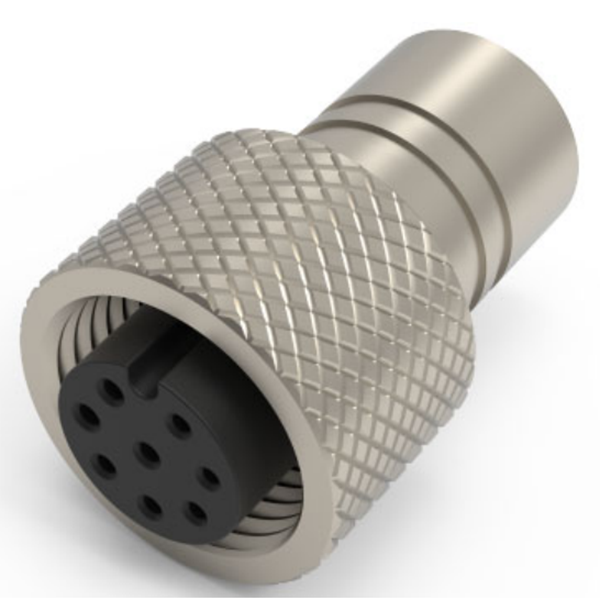

M12AFS08-0021
M12AFS08-0021
Number Of Contacts.
8
Code.
A
Rated Voltage.
30V
Rated Current.
2A
Contact Resistance.
≤3mΩ
Mechanical Life.
>100 mating cycles
READ MORE
