RG Cable
Types
Impedance (ohm)
Inner Conductor
Dielectric
Outer Conductor
Jacket
Operating Frequency
RG223
50
Copper Silver Plated Wire，Φ0.9
PE,Φ2.95
Double Layer Copper Braid Silver Plated，Nom. 3.95
Black PVC，Φ5.30
12.4GHz
RG214
50
Copper Silver Plated Wire，Φ7*0.752
PE,Φ7.24
Double Layer Copper Braid Silver Plated，Nom. 8.40
Black PVC，Φ10.80
11GHz
RG213
50
Bare copper wire,Φ7*0.752
PE,Φ7.24
Copper Braid Silver Plated，Nom. 7.85
Black PVC，Φ10.30
1GHz
RG196
50
Copper Silver Plated Clad Steel，Φ7*0.102
PTFE，Φ0.86
Copper Braid Silver Plated，Nom. 1.30
PTFE，Φ1.71
3GHz
RG195
95
Copper Silver Plated Clad Steel，Φ7*0.102
PTFE，Φ2.59
Copper Braid Silver Plated，Nom. 3.00
PTFE，Φ3.58
1GHz
RG188
50
Copper Silver Plated Clad Steel，Φ7*0.17
PTFE，Φ1.52
Copper Braid Silver Plated，Nom. 1.95
PTFE，Φ2.67
3GHz
RG187
75
Copper Silver Plated Clad Steel，Φ7*0.102
PTFE，Φ1.60
Copper Braid Silver Plated，Nom. 2.04
PTFE，Φ2.67
1GHz
RG180
95
Copper Silver Plated Clad Steel，Φ7*0.102
PTFE，Φ2.59
Copper Braid Silver Plated，Nom. 3.00
FEP,Φ3.56
3GHz
RG179D FEP
75
Copper Silver Plated Clad Steel，Φ7*0.102
FEP，Φ1.60
Double Layer Copper Braid Silver Plated，Nom. 2.50
FEP,Φ3.00
3GHz
RG179D
75
Copper Silver Plated Clad Steel，Φ7*0.102
PTFE，Φ1.60
Double Layer Copper Braid Silver Plated，Nom. 2.50
FEP,Φ3.00
3GHz
RG179 FEP
75
Copper Silver Plated Clad Steel，Φ7*0.102
FEP，Φ1.60
Copper Braid Silver Plated，Nom. 2.04
FEP,Φ2.54
3GHz
RG179
75
Copper Silver Plated Clad Steel，Φ7*0.102
PTFE，Φ1.60
Copper Braid Silver Plated，Nom. 2.04
FEP,Φ2.54
3GHz

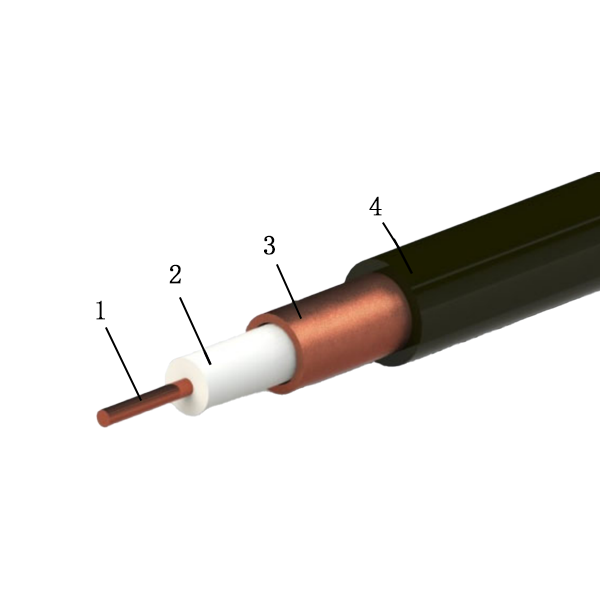

RG223
RG223
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Wire，Φ0.9
Dielectric.
PE,Φ2.95
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 3.95
Jacket.
Black PVC，Φ5.30
Operating Frequency.
12.4GHz
Operating Temperature Range.
-25~ +70℃
READ MORE
RG214
RG214
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Wire，Φ7*0.752
Dielectric.
PE,Φ7.24
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 8.40
Jacket.
Black PVC，Φ10.80
Operating Frequency.
11GHz
Operating Temperature Range.
-25~ +70℃
READ MORE
RG213
RG213
Impedance (ohm).
50
Inner Conductor.
Bare copper wire,Φ7*0.752
Dielectric.
PE,Φ7.24
Outer Conductor.
Copper Braid Silver Plated，Nom. 7.85
Jacket.
Black PVC，Φ10.30
Operating Frequency.
1GHz
Operating Temperature Range.
-25~ +70℃
READ MORE
RG196
RG196
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
PTFE，Φ0.86
Outer Conductor.
Copper Braid Silver Plated，Nom. 1.30
Jacket.
PTFE，Φ1.71
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +250℃
READ MORE

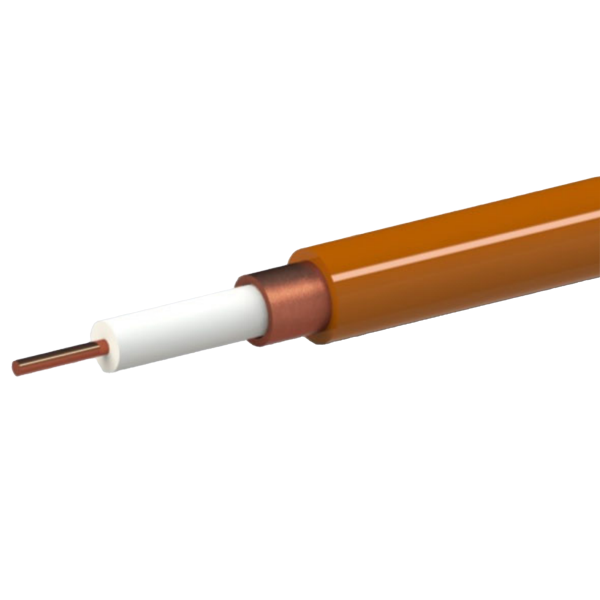

RG195
RG195
Impedance (ohm).
95
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
PTFE，Φ2.59
Outer Conductor.
Copper Braid Silver Plated，Nom. 3.00
Jacket.
PTFE，Φ3.58
Operating Frequency.
1GHz
Operating Temperature Range.
-55~ +250℃
READ MORE
RG188
RG188
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.17
Dielectric.
PTFE，Φ1.52
Outer Conductor.
Copper Braid Silver Plated，Nom. 1.95
Jacket.
PTFE，Φ2.67
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +250℃
READ MORE
RG187
RG187
Impedance (ohm).
75
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
PTFE，Φ1.60
Outer Conductor.
Copper Braid Silver Plated，Nom. 2.04
Jacket.
PTFE，Φ2.67
Operating Frequency.
1GHz
Operating Temperature Range.
-55~ +250℃
READ MORE
RG180
RG180
Impedance (ohm).
95
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
PTFE，Φ2.59
Outer Conductor.
Copper Braid Silver Plated，Nom. 3.00
Jacket.
FEP,Φ3.56
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG179D FEP
RG179D FEP
Impedance (ohm).
75
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
FEP，Φ1.60
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 2.50
Jacket.
FEP,Φ3.00
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +150℃
READ MORE
RG179D
RG179D
Impedance (ohm).
75
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
PTFE，Φ1.60
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 2.50
Jacket.
FEP,Φ3.00
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG179 FEP
RG179 FEP
Impedance (ohm).
75
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
FEP，Φ1.60
Outer Conductor.
Copper Braid Silver Plated，Nom. 2.04
Jacket.
FEP,Φ2.54
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +150℃
READ MORE
RG179
RG179
Impedance (ohm).
75
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.102
Dielectric.
PTFE，Φ1.60
Outer Conductor.
Copper Braid Silver Plated，Nom. 2.04
Jacket.
FEP,Φ2.54
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
