RG Cable
Types
Impedance (ohm)
Inner Conductor
Dielectric
Outer Conductor
Jacket
Operating Frequency
RG405
50
Copper Silver Plated Clad Steel，Φ0.51
PTFE，Φ1.68
Copper Tube，Φ2.20
/
61GHz
RG402
50
Copper Silver Plated Clad Steel，Φ0.93
PTFE，Φ3.00
Copper Tube，Φ3.58
/
34GHz
RG401
50
Silver Copper Plated Wire，Φ1.63
PTFE，Φ5.31
Copper Tube，Φ6.35
/
19GHz
RG400
50
Copper Silver Plated Wire，Φ19*0.203
PTFE，Φ2.95
Double Layer Copper Braid Silver Plated，Nom. 3.95
FEP,Φ4.95
12.4GHz
RG393
50
Copper Silver Plated Wire，Φ7*0.792
PTFE，Φ7.24
Double Layer Copper Braid Silver Plated，Nom. 8.50
FEP,Φ9.91
11GHz
RG316D FEP
50
Copper Silver Plated Clad Steel，Φ7*0.175
FEP,Φ1.52
Double Layer Copper Braid Silver Plated，Nom. 2.40
FEP,Φ2.90
3GHz
RG316D
50
Copper Silver Plated Clad Steel，Φ7*0.175
PTFE，Φ1.52
Double Layer Copper Braid Silver Plated，Nom. 2.40
FEP,Φ2.90
3GHz
RG316 FEP
50
Copper Silver Plated Clad Steel，Φ7*0.175
FEP,Φ1.52
Copper Braid Silver Plated，Nom. 1.95
FEP,Φ2.50
3GHz
RG316
50
Copper Silver Plated Clad Steel，Φ7*0.175
PTFE，Φ1.52
Copper Braid Silver Plated，Nom. 1.95
FEP,Φ2.50
3GHz
RG304
50
Copper Silver Plated Clad Steel，Φ1.50
PTFE，Φ4.70
Double Layer Copper Braid Silver Plated，Nom. 5.70
FEP,Φ7.11
12GHz
RG303
50
Copper Silver Plated Clad Steel，Φ0.93
PTFE，Φ3.00
Copper Braid Silver Plated，Nom. 4.32
FEP,Φ4.32
3GHz
RG302
75
Copper Silver Plated Clad Steel，Φ0.64
PTFE，Φ3.71
Copper Braid Silver Plated，Nom. 4.20
FEP,Φ5.13
3GHz

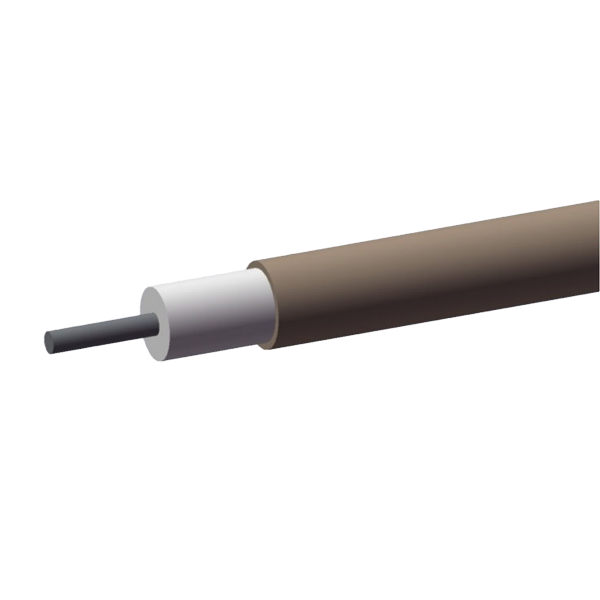

RG405
RG405
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ0.51
Dielectric.
PTFE，Φ1.68
Outer Conductor.
Copper Tube，Φ2.20
Jacket.
/
Operating Frequency.
61GHz
Operating Temperature Range.
-55~ +125℃
READ MORE
RG402
RG402
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ0.93
Dielectric.
PTFE，Φ3.00
Outer Conductor.
Copper Tube，Φ3.58
Jacket.
/
Operating Frequency.
34GHz
Operating Temperature Range.
-55~ +125℃
READ MORE
RG401
RG401
Impedance (ohm).
50
Inner Conductor.
Silver Copper Plated Wire，Φ1.63
Dielectric.
PTFE，Φ5.31
Outer Conductor.
Copper Tube，Φ6.35
Jacket.
/
Operating Frequency.
19GHz
Operating Temperature Range.
-55~ +125℃
READ MORE
RG400
RG400
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Wire，Φ19*0.203
Dielectric.
PTFE，Φ2.95
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 3.95
Jacket.
FEP,Φ4.95
Operating Frequency.
12.4GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG393
RG393
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Wire，Φ7*0.792
Dielectric.
PTFE，Φ7.24
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 8.50
Jacket.
FEP,Φ9.91
Operating Frequency.
11GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG316D FEP
RG316D FEP
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.175
Dielectric.
FEP,Φ1.52
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 2.40
Jacket.
FEP,Φ2.90
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +150℃
READ MORE
RG316D
RG316D
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.175
Dielectric.
PTFE，Φ1.52
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 2.40
Jacket.
FEP,Φ2.90
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE

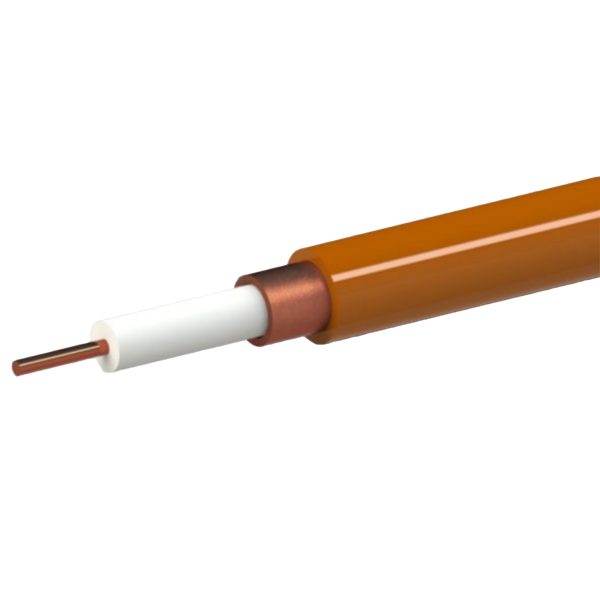

RG316 FEP
RG316 FEP
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.175
Dielectric.
FEP,Φ1.52
Outer Conductor.
Copper Braid Silver Plated，Nom. 1.95
Jacket.
FEP,Φ2.50
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +150℃
READ MORE
RG316
RG316
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ7*0.175
Dielectric.
PTFE，Φ1.52
Outer Conductor.
Copper Braid Silver Plated，Nom. 1.95
Jacket.
FEP,Φ2.50
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG304
RG304
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ1.50
Dielectric.
PTFE，Φ4.70
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 5.70
Jacket.
FEP,Φ7.11
Operating Frequency.
12GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG303
RG303
Impedance (ohm).
50
Inner Conductor.
Copper Silver Plated Clad Steel，Φ0.93
Dielectric.
PTFE，Φ3.00
Outer Conductor.
Copper Braid Silver Plated，Nom. 4.32
Jacket.
FEP,Φ4.32
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG302
RG302
Impedance (ohm).
75
Inner Conductor.
Copper Silver Plated Clad Steel，Φ0.64
Dielectric.
PTFE，Φ3.71
Outer Conductor.
Copper Braid Silver Plated，Nom. 4.20
Jacket.
FEP,Φ5.13
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
