Cable
Types
Impedance (ohm)
Inner Conductor
Dielectric
Outer Conductor
Jacket
Operating Frequency
RG178 FEP
50
Silver Plated Copper Clad Steel, Φ7*0.102
FEP,Φ0.88
Copper Braid Silver Plated，Nom. 1.30
FEP,Φ1.83
3GHz
RG178
50
Silver Plated Copper Clad Steel, Φ7*0.102
PTFE，Φ0.86
Copper Braid Silver Plated，Nom. 1.30
FEP,Φ1.83
3GHz
RG174
50
Copper Clad Steel，Φ7*0.17
PE,Φ1.52
Copper Wire Braid Tin Plated，Nom. 1.90
Black PVC，Φ2.79
1GHz
RG142
50
Silver Plated Copper Clad Steel, Φ0.93
PTFE，Φ3.00
Double Layer Copper Braid Silver Plated，Nom. 3.95
FEP,Φ4.95
12.4GHz
RG62
93
Copper Clad Steel，Φ0.64
Foaming PE,Φ3.71
Bare copper wire，Nom. 4.20
Black PVC，Φ6.10
1GHz
RG59
75
Bare copper wire,Φ0.81
Foaming PE,Φ3.66
Foil Bonded + Alum Braid,Nom. 4.10
PVC/PE,Φ6.10
/
RG58
50
Copper Wire Tin Plated，Φ19*0.18
PE,Φ2.95
Copper Wire Braid Tin Plated，Nom. 3.50
Black PVC，Φ4.95
1GHz
RG11
75
Bare copper wire,Φ1.63
Foaming PE,Φ7.11
Foil Bonded + Alum Braid,Nom. 7.8
PVC/PE,Φ10.03
/
RG8
75
Bare copper wire,Φ2.74
Foaming PE,Φ7.24
Foil Bonded + Alum Braid,Nom. 8.13
PE,Φ10.16
/
RG6
75
Bare copper wire,Φ1.02
Foaming PE,Φ4.57
Foil Bonded + Alum Braid,Nom. 5.22
PVC/PE,Φ6.91
/
SNO670-250
75
Silver Plated Copper Clad Steel, Φ0.93
PTFE，Φ5.27
Copper Braid Tin Dipped,Φ6.20
/
18GHz
SNO670-160 SXE
50
Silver Plated Copper Clad Steel, Φ1.08
PTFE，Φ3.50
Copper Braid Tin Dipped,Φ4.10
FEP,Φ4.70
30GHz
RG178 FEP
RG178 FEP
Impedance (ohm).
50
Inner Conductor.
Silver Plated Copper Clad Steel, Φ7*0.102
Dielectric.
FEP,Φ0.88
Outer Conductor.
Copper Braid Silver Plated，Nom. 1.30
Jacket.
FEP,Φ1.83
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +150℃
READ MORE
RG178
RG178
Impedance (ohm).
50
Inner Conductor.
Silver Plated Copper Clad Steel, Φ7*0.102
Dielectric.
PTFE，Φ0.86
Outer Conductor.
Copper Braid Silver Plated，Nom. 1.30
Jacket.
FEP,Φ1.83
Operating Frequency.
3GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG174
RG174
Impedance (ohm).
50
Inner Conductor.
Copper Clad Steel，Φ7*0.17
Dielectric.
PE,Φ1.52
Outer Conductor.
Copper Wire Braid Tin Plated，Nom. 1.90
Jacket.
Black PVC，Φ2.79
Operating Frequency.
1GHz
Operating Temperature Range.
-25~ +70℃
READ MORE
RG142
RG142
Impedance (ohm).
50
Inner Conductor.
Silver Plated Copper Clad Steel, Φ0.93
Dielectric.
PTFE，Φ3.00
Outer Conductor.
Double Layer Copper Braid Silver Plated，Nom. 3.95
Jacket.
FEP,Φ4.95
Operating Frequency.
12.4GHz
Operating Temperature Range.
-55~ +200℃
READ MORE
RG62
RG62
Impedance (ohm).
93
Inner Conductor.
Copper Clad Steel，Φ0.64
Dielectric.
Foaming PE,Φ3.71
Outer Conductor.
Bare copper wire，Nom. 4.20
Jacket.
Black PVC，Φ6.10
Operating Frequency.
1GHz
Operating Temperature Range.
-25~ +70℃
READ MORE
RG59
RG59
Impedance (ohm).
75
Inner Conductor.
Bare copper wire,Φ0.81
Dielectric.
Foaming PE,Φ3.66
Outer Conductor.
Foil Bonded + Alum Braid,Nom. 4.10
Jacket.
PVC/PE,Φ6.10
Operating Frequency.
/
Operating Temperature Range.
-25 ~ +70℃ @ PVC -40 ~ +80 ℃@ PE
READ MORE
RG58
RG58
Impedance (ohm).
50
Inner Conductor.
Copper Wire Tin Plated，Φ19*0.18
Dielectric.
PE,Φ2.95
Outer Conductor.
Copper Wire Braid Tin Plated，Nom. 3.50
Jacket.
Black PVC，Φ4.95
Operating Frequency.
1GHz
Operating Temperature Range.
-25~ +70℃
READ MORE
RG11
RG11
Impedance (ohm).
75
Inner Conductor.
Bare copper wire,Φ1.63
Dielectric.
Foaming PE,Φ7.11
Outer Conductor.
Foil Bonded + Alum Braid,Nom. 7.8
Jacket.
PVC/PE,Φ10.03
Operating Frequency.
/
Operating Temperature Range.
-25 ~ +70℃ @ PVC -40 ~ +80 ℃@ PE
READ MORE
RG8
RG8
Impedance (ohm).
75
Inner Conductor.
Bare copper wire,Φ2.74
Dielectric.
Foaming PE,Φ7.24
Outer Conductor.
Foil Bonded + Alum Braid,Nom. 8.13
Jacket.
PE,Φ10.16
Operating Frequency.
/
Operating Temperature Range.
-40 ~ +80℃
READ MORE
RG6
RG6
Impedance (ohm).
75
Inner Conductor.
Bare copper wire,Φ1.02
Dielectric.
Foaming PE,Φ4.57
Outer Conductor.
Foil Bonded + Alum Braid,Nom. 5.22
Jacket.
PVC/PE,Φ6.91
Operating Frequency.
/
Operating Temperature Range.
-25 ~ +70℃ @ PVC -40 ~ +80 ℃@ PE
READ MORE

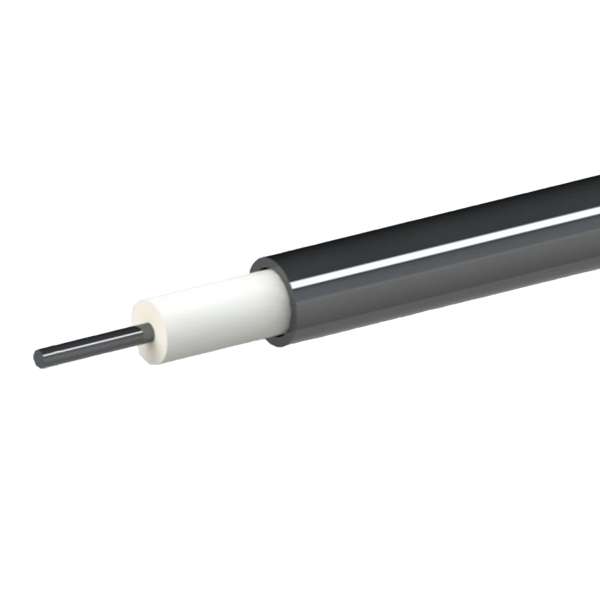

SNO670-250
SNO670-250
Impedance (ohm).
75
Inner Conductor.
Silver Plated Copper Clad Steel, Φ0.93
Dielectric.
PTFE，Φ5.27
Outer Conductor.
Copper Braid Tin Dipped,Φ6.20
Jacket.
/
Operating Frequency.
18GHz
Operating Temperature Range.
-55 to +125 ℃
READ MORE

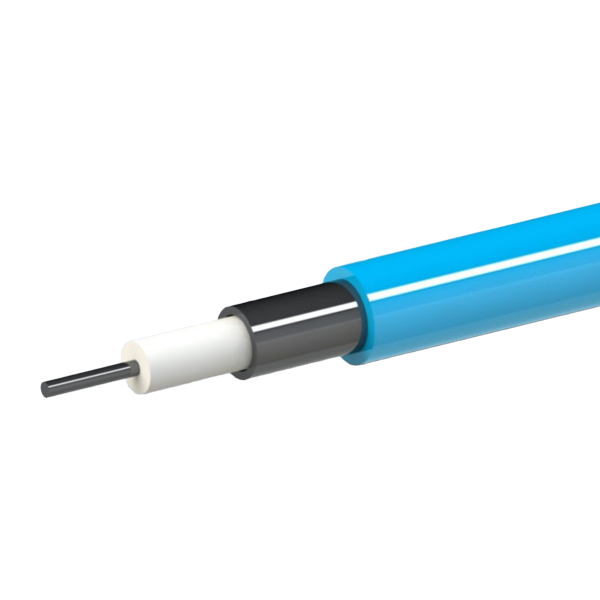

SNO670-160 SXE
SNO670-160 SXE
Impedance (ohm).
50
Inner Conductor.
Silver Plated Copper Clad Steel, Φ1.08
Dielectric.
PTFE，Φ3.50
Outer Conductor.
Copper Braid Tin Dipped,Φ4.10
Jacket.
FEP,Φ4.70
Operating Frequency.
30GHz
Operating Temperature Range.
-55 to +125 ℃
READ MORE
