Latest data cable
Increase by 50%

Electrical Characteristics:

Frenqucy Range:DC~6GHZ

Impedance:50Ω

VSWR：1.3MAX@6GHZ

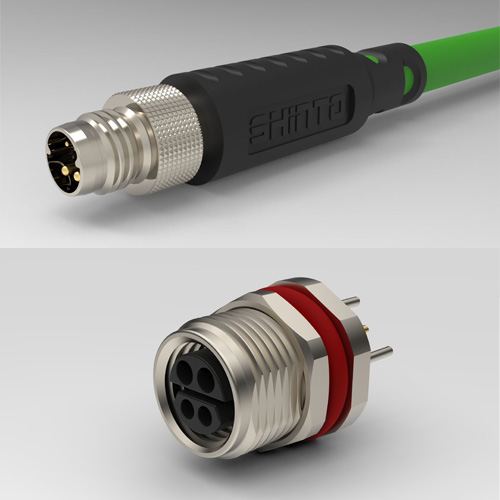

It is an SPE product designed according to IEC standard interface, including a pair of data transmission lines and two power lines:

IEC 63171-6 standard supported
One pair differential signal wire and two power wires
Data transmission is possible up to 1 Gb/s.
Power supply up to 400W

[Subminiature cluster connectors 4 way]
A pair of connectors, receptacles for PCB DIP installation, plugs for RF1.37 coaxial cable assemblies:
IEC 61169-1-2013 standard supported
Slide-on mounting, no threading
3.00mm (0.118 inch) pitch center-to center
Layout of 4 way

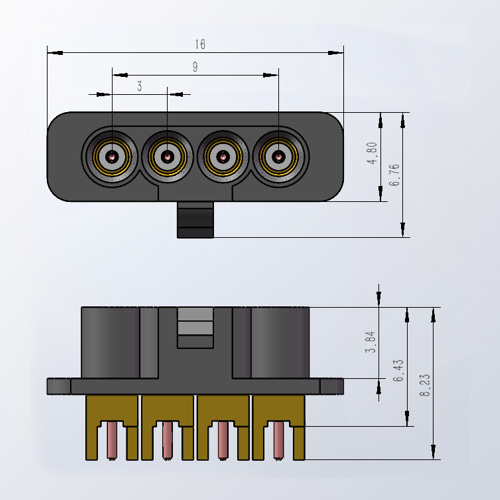

4 way receptacles
Housing: high temperature nylon
Outer contact: brass, gold plated
Insulator: Teflon
Inner contact: copper alloy, gold plated
Design for wave soldering applications

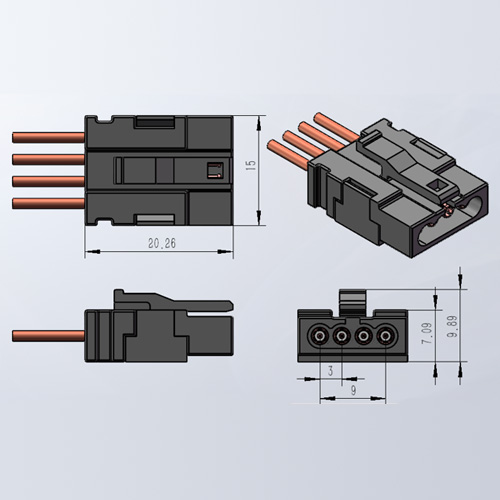

4 way plugs for RF1.37 cable
Housing: high temperature nylon
Outer contact: copper alloy, gold plated
Insulator: Teflon
Inner contact: brass, gold plated
Design for hand soldering applications
